BLDC-4008 Brushless dc motor driver

introduction

BLDC-4008 Brushless dc motor driver features

1, VDC; 24~36 current: 8A;

2. Rotating-speed display;

3. Hall s mode or no hall s model to choose;

4. Rate opening loop or Closed-loop to choose;

5. Adopt new PWM pulse technology.



1、Port intructions:

BLD-4008驱动器引脚端口说明


+AT  -AT

输入直流电源小于40V

U,V,W

输出电机接线端口

+5V

霍尔电源+5V

GND

霍尔电源负端

HALL A、B、C

霍尔A,B,C 相

GND

调速输入端负极

CW

电机正转输入端口

CCW

电机反转输入端口

DA

调速端口,一般0~10V内

BRAKE

电机制动端口

CLK

转速反馈端口

+5V

调速输入端正极

2、the internal circuit set

Closed loop setting: switch combination 1,3,5,9, connecting withswitch accumulate  and multiply by 1000, that is the  maxClosed-loop RPM;

Hall model or not setting: connecting with switch W to run Hallbrushless motor, otherwise run no hall brushless motor.

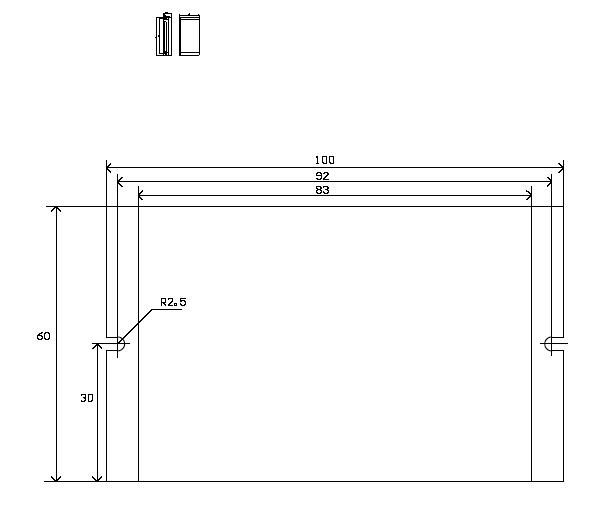

安装外形图:
