86BLM直流无刷电机技术参数
型号 Series Model | 额定电压 Voltage (V) | 额定电流 Rated Current (A) | 电阻 Phase Resistance (Ω) | 空载转速No load speed (rpm) | 额定转速Rated speed (rpm) | 额定转矩 Rated torque (N.M) | 最大转矩Torque Max (N.m) | 转矩常数Torque constant(Nm/A) | 反电势 Back-EMF constant V/Krpm | 功率 Power Watts(W) | 机长 Motor Length ( L mm) | 重量 Weight (kg) |
ST86BLM001 | 48 | 3.9 | 3.2 | 5000 | 3000 | 0.35 | 1.05 | 0.11 | 11.5 | 110 | 57 | 1.1 |
ST86BLM002 | 48 | 6.6 | 1.26 | 5000 | 3000 | 0.7 | 2.1 | 0.11 | 11.5 | 220 | 67 | 1.7 |
ST86BLM003 | 48 | 9.6 | 0.67 | 5000 | 3000 | 1.05 | 3.2 | 0.11 | 11.5 | 330 | 80 | 2.2 |
ST86BLM004 | 48 | 14 | 0.47 | 5000 | 3000 | 1.4 | 4.2 | 0.128 | 13.5 | 440 | 95 | 2.8 |

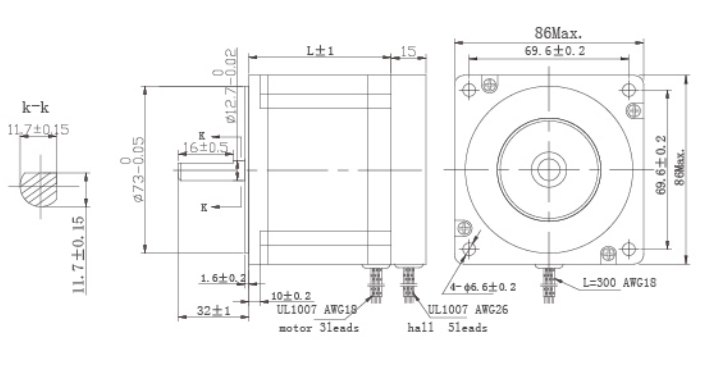

Dimensions(外形图): unit=mm
